Now with two liner options: Choose the NEW Ultra-breathable 3D Mesh Liner or the AccuSoft Foam Insert

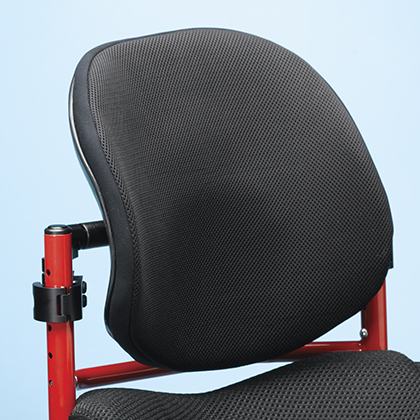

The Custom Back provides exacting support for the widest range of needs — it is the better solution for those considering traditional custom wheelchair seating and also an ideal match for the growing and active user.
The shape capture process allows the Custom Back to be made to fit virtually any size and contour. Custom Back shapes can be captured using the bead bag and vacuum system. Now you can skip the plaster step and use the RideWorks app to quickly and accurately scan a 3-D image of the shape. The Custom Back is most effective when coupled with a Ride® wheelchair cushion.
SUPPORTS INDIVIDUAL CONTOURS
The Custom Back supports the unique contours of the user’s body to provide accurate supportive contact.
OFFERS LIGHTWEIGHT STRENGTH
A thin profile and lightweight design have little or no impact on wheelchair seat depth, width, or performance, making the Custom Back appropriate even for active users.
LINER OPTIONS
For a more forgiving user interface, consider the AccuSoft open-cell polyurethane foam insert -- or, for the ultimate in airflow, choose the ultra-breathable 3D mesh liner. (Both options are alternatives to the original firm composite foam liner which was discontinued as of June 1, 2021.)
AIDS IN PROTECTION AND COMFORT
Supplementary padding and relief options improve protection and comfort at sensitive areas and also enhance the overall performance of the associated Ride® wheelchair cushion.
ADJUSTS EASILY

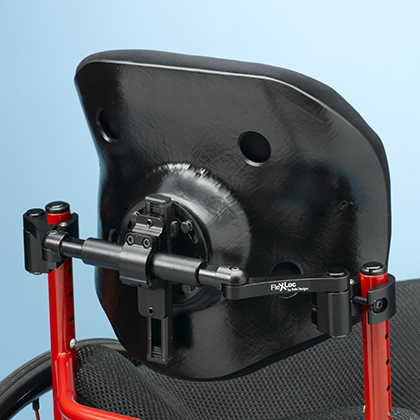

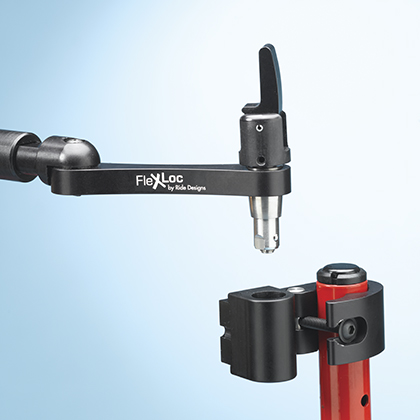

The infinitely adjustable FlexLoc® mounting system allows adjustment in every axis of movement ensuring optimal balance and postural control. Height, depth, angle, and rotation can all be adjusted independently. Mounting hardware is available in fixed or quick release styles.
GROWS ALONG WITH THE USER
The Ride Custom Back can be modified for linear growth and weight change at a fraction of the cost of a new back.
COVER OPTIONS
Spacer fabric or wipeable, incontinence-proof covers are available.
Widths | Virtually any width |
Heights | Virtually any height |
Weight | Including hardware: Varies depending on back size, options, and hardware selected |
Weight Capacity | 250 lbs (113kg) |
Angle/Recline | Infinite, when mounted with single FlexLoc hardware option |
Seat Depth Range of Adjustment | Up to and potentially beyond 10.5” (26.7cm) depending on hardware configuration chosen |
Construction (Materials Used) | Insert material: High resilience 3d spacer mesh fabric or polyurethane foam, additional padding options available; Shell material: Polypropylene plastic with styrene inner shell |
Outer Cover Construction (Outer surface that contacts skin) | Breathable polyester spacer fabric |
SELECT YOUR CUSTOMISABLE OPTIONS AND SETUP
- Universal Headrest Mounting Plate
- Universal Headrest Mounting Plate
- Integrated Headrest/Accessories Mount
- Integrated Headrest/Accessories Mount
- Shoulder Harness Guides (pair, loose)
- Shoulder Harness Guides (pair, loose)
- Shoulder Harness Guides (pair, installed)
- Shoulder Harness Guides (pair, installed)
- Privacy Flap
- Privacy Flap
- Abdominal Support Panel
- Abdominal Support Panel
- Extra Outer Cover
- Extra Outer Cover
- Growth Kit
- Growth Kit
- Outer Cover
- Outer Cover
- Owner's Handbook
- Owner's Handbook
- Outer Cover
- Outer Cover
- Owner's Handbook
- Owner's Handbook
Some colors may be an additional cost. Please refer to order forms for product specifc pricing and availability
