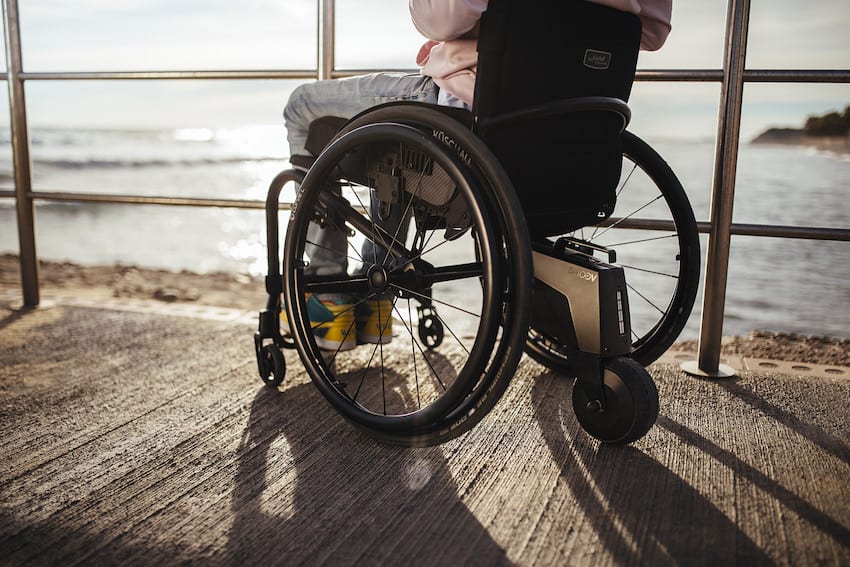

The SMOOV one is an electric power-assist drive unit for active wheelchairs which significantly increases the driver‘s mobility and flexibility.
Product advantages at a glance:
Discreet, unobtrusive design
Swiveling drive wheel for dynamic driving
Extremely swift; turns itself on the spot
Efficient; high-performance drive unit
Tilted driving is also possible with the SMOOV one
Intuitive docking and undocking of the drive unit and control unit
Easy to use thanks to the ergonomic, wireless control unit
Individual adjustment and extension of the scope of functions possible via the SMOOV Mobility App
Can be mounted to most active rigid-frame and folding wheelchairs
Dynamically en route
- A version with a maximum assistance of 6 km/h and 10 km/h available
- Active, swift handling thanks to the swivelling drive wheel - Tilted driving with docked on drive is possible
- Slope up to 16 %
High range
- Range up to 20 km with one battery charging thanks to a highly efficient direct drive combined with state-of-the-art lithium ion technology
Lightweight
- Weighing just 7.2 kg, this is one of the lightest active drives on the market
Your Low key companion
- Small, discreet drive unit under the wheelchair
- Modern, unobtrusive design
Easy to handle
- Intuitive docking and undocking of the drive and control unit
- Easy to use thanks to the ergonomic, wireless control unit
Minimum adjustments to your wheelchair
- Small, discreet bracket for the drive and control unit
- The wheelchair can still be used manually
Individually adaptable
- Personal settings and extension of the scope of functions possible via the SMOOV Mobility App
General*
Weight of the person | Max. 140 kg |
Permissible total weight | Max. 170 kg |
Climbing capability | Up to 16 % |
Drive unit
Motor power rating | 250 W |
Max. motor power | 450 W |
Max. motor power | 36 V |
Speed | 0–6 km/h (optionally up to 10 km/h) |
Battery pack (drive unit)
Battery cells | 36 V; 6.2 Ah Lithium ion cells, leakproof and maintenance-free 24 months guarantee |
Battery power | 224 Wh Safe for air transportation according to IATA |
224 Wh Safe for air transportation according to IATA | Up to 20 km, depending on the ground surface, the weight of the person, temperature and terrain |
Battery charger
Input voltage | 100–240 V |
Frequency range | 50–60 Hz |
Output voltage | 48 V (DC) |
Charging current | 1 A |
Charging time |
Weight
Drive unit | 7.2 kg |
Control unit | 250 g |
Battery charger | 500 g |
Control unit bracket | Approx. 100 g** |
Crossbar/camber tube bracket | Approx. 230 g** |
